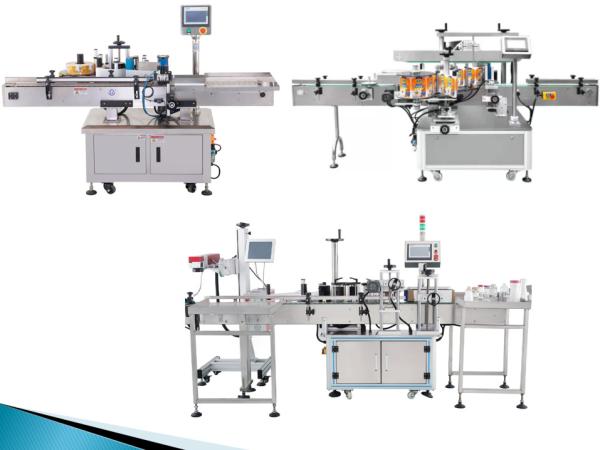

Bottle Labeling Machine Is Suitable For The Round Bottle And Flat Bottle Labeling At The Sam

High quality bottle labeling machine

High quality bottle labeling machine is suitable for the round bottle and flat bottle labeling at the same time.

The scope of application

Label on the special position of round bottle / flat bottle in beverage, health care, food, medicine, daily chemical and light industry.
(notes: our machine can be customized rely on your requirement, please sent your require bottle photos)

Device characteristic
1, Adopt mature technology PLC control system, stable and high-speed operation;
2, Touch-screen human-machine interface operating , simple and efficient;
3, High-power import servo motor, labeling fast and accurately.
4, Upgrade version of the dish standard station design, also suit for the conical bottle ;
5, Reciprocating cylinder positioning, label the product specified location accurately,
6, The whole machine use S304 stainless steel and anodized senior aluminum alloy material, with high corrosion resistance and never rust;
7, No bottle not labeling, automatic alarm when leakage label.
8, For the transparent label no wrinkle and bubble .

High quality bottle labeling machine
Label on the special position of round bottle in beverage, health care, food, medicine, daily chemical and light industry. (note: our machine can be customized rely on your requirement)

Device characteristic

1, Adopt mature technology PLC control system, stable and high-speed operation;
2, Touch-screen human-machine interface operating , simple and efficient;
3, High-power import servo motor, labeling fast and accurately.
4, Upgrade version of the dish standard station design, also suit for the conical bottle ;
5, Reciprocating cylinder positioning, label the product specified location accurately,
6, The whole machine use S304 stainless steel and anodized senior aluminum alloy material, with high corrosion resistance and never rust;
7, No bottle not labeling, automatic alarm when leakage label.
8, For the transparent label no wrinkle and bubble .

Related products Hot sales items: automatic sticker round bottle labeling machine, labeling machine manufacturers, labeling machine wholesale, labeling machine customized made in China

Details reference:

1. Labeling speed: 0-25m / min

2. Production capacity: 20-45 bottles / min (depending on label and bottle size)

3. Labeling accuracy: ± 1mm (excluding product and label error)

4. Label material: non transparent adhesive (transparent label needs to add transparent electric eye)

5. Program control: PLC and touch screen control

6. Applicable paper roll: inner diameter 76mm, outer diameter maximum 300 mm

7. Applicable label: length 15-250mm, width 15-110mm

8. Applicable products: outer diameter 25-90mm, height 25-300mm

9. Equipment power supply: 220 V / 50 Hz, about 0.8 kW

10. Air pressure: 0.6-0.8mpa

11. Conveying motor: 140W variable frequency adjustable speed motor

12. Conveyor belt: 82mm wide POM chain, 750 ± 25mm above the ground (can be customized according to customer requirements)

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

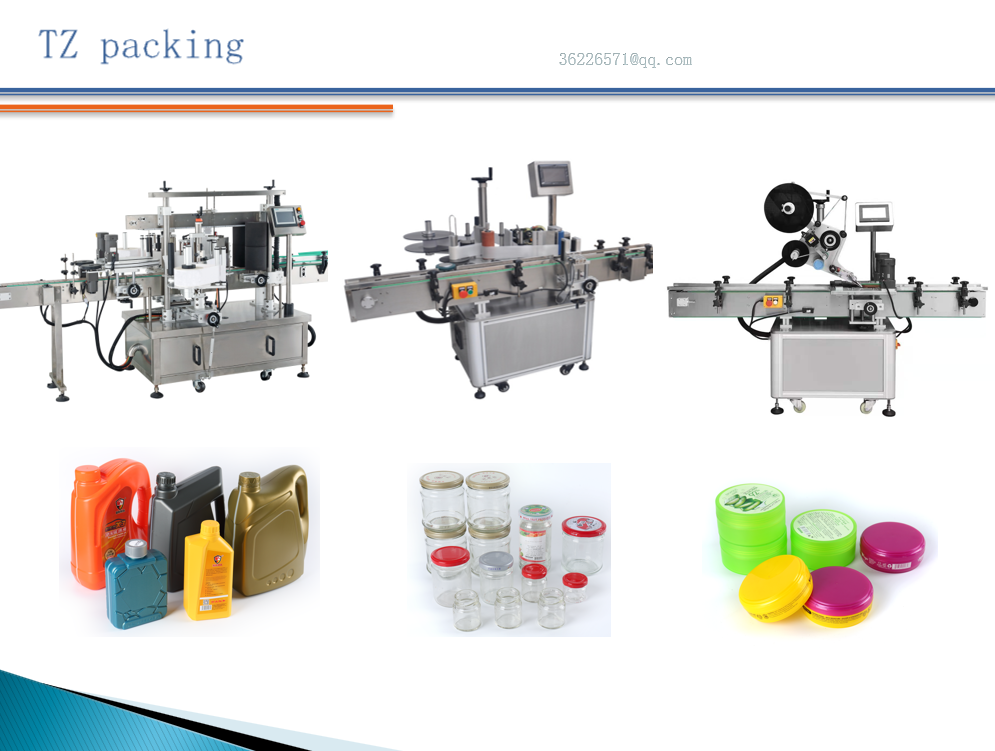

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
