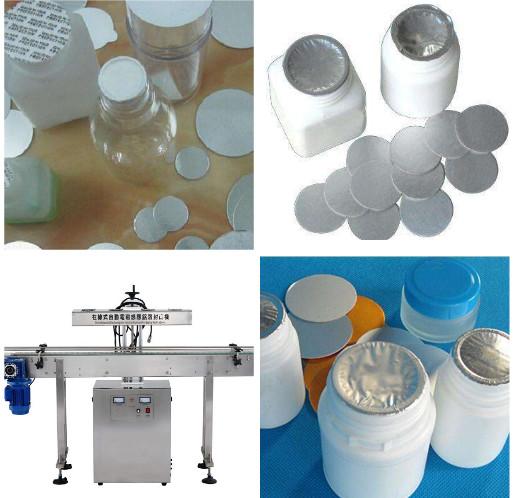

Conduction Sealing Machine

Conduction Sealing Machine uses the principle of electromagnetic induction to generate high temperature instantly on the aluminum foil on the bottle mouth, and then fuse the aluminum foil on the bottle mouth to achieve the function of sealing. It has good moisture-proof, mildew-proof, and anti-counterfeiting effects, thereby prolonging the storage time of items.

The main purpose

The Conduction Sealing Machine is used in the ideal sealing and packaging equipment for medicine, pesticide, food, cosmetics, lubricating oil and other industries.

Technical Parameters

• Rated voltage: AC220V, 50/60HZ
• Equipment weight: gross weight: 38KG, net weight: 34KG
• Maximum power: 1300W
• Cooling method: air cooling
• Sealing diameter: 15-80mm (optional)
• Sealing height: 20-180mm
• Conveyor speed: 0-12.5 m / min
• Sealing speed: 0-200 bottles / min
• Packing size: 970*515*475mm
• Host size: 805*310*330mm
• Appearance: Stainless steel

Principle and characteristics

The Conduction Sealing Machine utilizes the principle of electromagnetic induction to instantly generate high heat of the aluminum foil on the bottle mouth, and then fuses it on the bottle mouth to achieve the function of sealing. Has a good moisture, mildew, anti-counterfeiting effect, to extend the life cycle of the item. The material of the container may be polyethylene (PE), polypropylene (PP), polyester (PET), polystyrene (PS), ABS, glass, etc., and cannot be used for metal bottles and caps.

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
