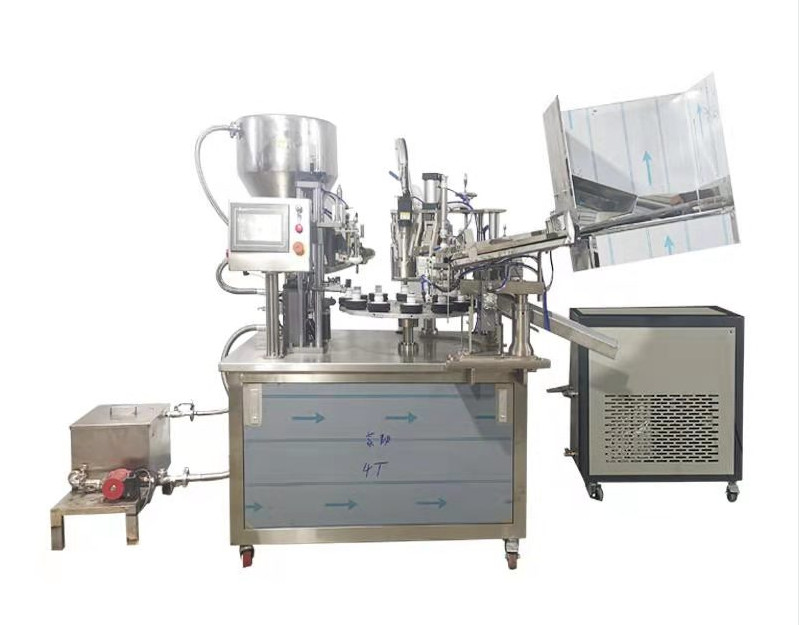

High Quality Plastic Tube Filling Sealing Machine for Liquid Paste Cream Glue

This machine is mainly used for quantitative filling and sealing of plastic composite hoses as packaging container materials. This machine is widely used in packaging in medicine, daily chemical, food, chemical and other industries.
Operation process, manually insert the plastic composite hose into the indexing coil seat (16 stations), use mechanical transmission to automatically turn the position, photoelectric detection, confirm that the tube starts to automatically measure and fill the tube, and then perform two-way four-fold sealing , The finished product is withdrawn.
technical parameter
Product name Fully automatic plastic compound filling and sealing machine

1) Touch screen operation, humanized design, simple and intuitive operation.
2) Servo filling control ensures the accuracy of filling.
3) Photoelectric sensor and pneumatic door linkage control.
4) Pneumatically executed control valve, high efficiency and safety. The flow channel can be adjusted and cleaned independently.
5) Adopting anti-drip and anti-drawing filling nozzle structure design.
6) The material of the whole machine is composed of stainless steel and anodized aluminum alloy. The part connected with the material is made of SUS304 stainless steel.
7) Filling range: 20-200ml
8) The filling speed of the automatic machine: 30-50 pieces/min (a little difference according to different products).
9) Sealing pipe diameter range: 13-50mm.
10) Hose height range: 80-220mm.
11) Voltage: 220V 50/60HZ.
12) Air pressure: 0.4-0.6Mpa.
13) (L×W×H): 1940 mm×1280mm×1780mm.
Machine weight: 650KG.

Guangzhou factory direct supply ,all would base on customer requirement to made. welcome contact 008613794308529 for farther information.

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
