Technical Parameters
1. Number of filling heads supply: 1 head, 2 head, 4 head, 6head, 8head, 10head, 12head,16heads, 18 heads,20heads
2. Filling capacity: 10ml~100ml, 100ml to 500 ml, 500ml~5000ml
3. Filling form: full servo drive filling, would filling with rising
4. Filling speed: about 2000 bottles / hour for 6head. 3000bottle /hour for 8nozzles etc...
5. Filling accuracy: ±1%
6. Material: 304 stainless steel for filling frame
7. Program control: PLC + touch screen
8. Filling mouth and trough contact liquid parts material: 304# stainless steel, food grade PVC
9. Air pressure: 0.6-0.8MPa
10. Conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min, height 850mm ± 25mm off the ground
11. Conveying motor: 370W variable frequency speed regulating motor
12. Power: about 4KW/AC220V 50/60HZ
13. Tank capacity: approx. 200 liters (with level switch).
Can be customized according to the actual situation of the customer

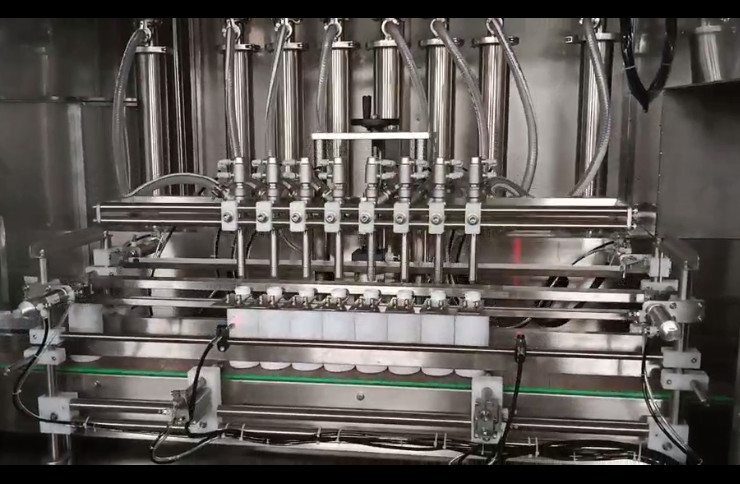

Fully Automatic Shampoo Bottle Filling Machine would single useing or match with capping machine, labeling machine together use as one filling line, Fully Automatic Shampoo Bottle Filling Machine match with different customer require, And is loved by the operators, hotsales items such like Shampoo filling machine,soap liquid filling machine,automatic filling machine,liquid filling machine.

Automatic Bottle Filling Capping Machine Line for Hand Sanitizer / Disinfectant / Alcohol. Factory Direct Sale/ Fast Delivery/ Installation/ high quality/ good using/ easy handle.

we are the Filling machine manufacturer, famous for High quality guarantee China Filling Machine
and we offer One piece at wholesale price
we would be customized as requirements
2021year hotsale items have shampoo filling machine
Bottle Filling Line
Bottle Packaging Line
One Stop Filling Machine
Auto Shrink Wrap Machine
alcohol filling machine
hand sanitizer filling machine
adhesive filling machine
Viscous liquid filling machine

Our factory would according customer requirement to make the machine as well, similar hotsale machine such as :

Other filling style reference.

Gravity and Pressure Fillers
The Gravity and Pressure/Gravity Fillers are suitable for bottling virtually any water-thin to medium consistent viscosity liquid. Gravity fillers are ideally suited for thin, foamy products where pressure/gravity fillers handle heavier viscosity products.

Pump Fillers
TZ offers several different types of pump fillers to accommodate a wide variety of products. They provide an accurate and versatile method for filling low, medium and high viscosity liquids into a wide range of containers. TZ MACHINE uses a variety of pumps including progressive cavity pumps, gear pumps, lobe pumps, rotor pumps or whichever is best for the application. We work with each customer to choose the right pumps, valves, and fittings for each application.

Gravity, Pressure & Vacuum Overflow Bottle Fillers
Overflow Fillers provide the same cosmetic fill level, making them ideal for filling transparent containers that must have a consistent fill level. Gravity and pressure overflow fillers are designed to handle thin to medium viscosity products. The TZ Vacuum Overflow Filler is used for specialty filling applications and is typically used to fill small volume glass containers with low viscosity liquids.

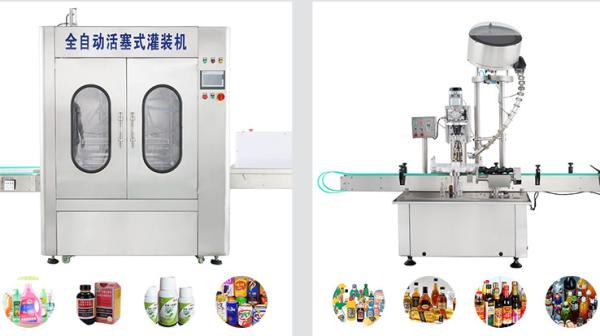

Piston Filling
Piston fillers are another great option for packaging liquids. They offer fast and accurate fill rates, versatility with the ability to handle many different types of products, and they’re gentle on products. They’re ideal for viscous liquids including batters, sauces, pastes, icing, chunky fillings, and certain aerated products. Generally, these liquid packing machines are used to fill liquids that are squeezed through pastry bags or similar packaging.

Net Weigh Bottle Fillers
Net weigh liquid filling systems are great for making sure that each container you fill contains the same amount of product. They are particularly efficient at packaging bulk quantities of products, along with products that are of high value and require the maximum accuracy when weighing them to avoid lost profits.


any question, please contact with Cindy freely, 008613794308529, 36226571@qq.com, thanks

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
