Full Automatic Bottling Line For Hand Sanitizer Water 4000BPH Water Filling Machine​

Hand Sanitizer Filling Machine Line

Due to the impact of the epidemic, all customers who need hand sanitizer / disinfectant / alcohol packaging machinery can place an order first, and we will arrange it as soon as possible.

Hand sanitizer / disinfectant / alcohol packaging machinery
Hand sanitizer filling capping labeling packaging machine line

Hand sanitizer filling machine line

Disinfectant filling packaging machinery
Disinfectant filling capping labeling machine line
Alcohol filling packaging machine line.
Alcohol filling machine line.

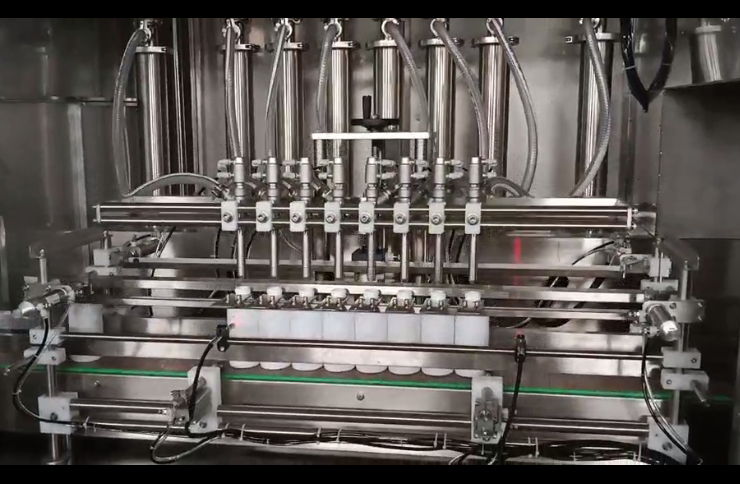

Automatic Filling Machine

Automatic Filling Machine are suitable for different area, suck as in daily liquid or paste filling packing.

Technical Parameters

1. Number of filling heads: 1 head, 2 head, 4 head, 6head, 8head, 10head, 12head.
2. Filling capacity: 100ml to 5000 ml
3. Filling form: full servo drive filling
4. Filling speed: about 1800 bottles / minute for 1head.
5. Filling accuracy: ±1%
6. Material: 304 stainless steel for filling frame
7. Program control: PLC + touch screen
8. Filling mouth and trough contact liquid parts material: 304# stainless steel, food grade PVC
9. Air pressure: 0.6-0.8MPa
10. Conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min, height 850mm ± 25mm off the ground
11. Conveying motor: 370W variable frequency speed regulating motor
12. Power: about 4KW/AC220V 50/60HZ
13. Tank capacity: approx. 200 liters (with level switch).

Can be customized according to the actual situation of the customer

Other filling style reference.

Gravity and Pressure Fillers

The Gravity and Pressure/Gravity Fillers are suitable for bottling virtually any water-thin to medium consistent viscosity liquid. Gravity fillers are ideally suited for thin, foamy products where pressure/gravity fillers handle heavier viscosity products.

Pump Fillers

GH offers several different types of pump fillers to accommodate a wide variety of products. They provide an accurate and versatile method for filling low, medium and high viscosity liquids into a wide range of containers. GH MACHINE uses a variety of pumps including progressive cavity pumps, gear pumps, lobe pumps, rotor pumps or whichever is best for the application. We work with each customer to choose the right pumps, valves, and fittings for each application.

Gravity, Pressure & Vacuum Overflow Bottle Fillers
Overflow Fillers provide the same cosmetic fill level, making them ideal for filling transparent containers that must have a consistent fill level. Gravity and pressure overflow fillers are designed to handle thin to medium viscosity products. The GH Vacuum Overflow Filler is used for specialty filling applications and is typically used to fill small volume glass containers with low viscosity liquids.

Piston Filling

Piston fillers are another great option for packaging liquids. They offer fast and accurate fill rates, versatility with the ability to handle many different types of products, and they’re gentle on products. They’re ideal for viscous liquids including batters, sauces, pastes, icing, chunky fillings, and certain aerated products. Generally, these liquid packing machines are used to fill liquids that are squeezed through pastry bags or similar packaging.

Net Weigh Bottle Fillers
Net weigh liquid filling systems are great for making sure that each container you fill contains the same amount of product. They are particularly efficient at packaging bulk quantities of products, along with products that are of high value and require the maximum accuracy when weighing them to avoid lost profits.

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
