Alcohol filling machine equipment line with explosion-proof

advantage:

The automatic explosion-proof alcohol filling machine is a professional alcohol packaging machine, which can treat various alcohols such as electronic alcohol, medical alcohol, perfume alcohol, edible alcohol, corn alcohol and other liquid flammable products.

The combination of rich production experience and advanced production equipment has cultivated our high-speed and superb shipping speed.

1.Suitable for bottle type: according to the sample provided by the customer

2.Number of filling heads: 4~10nozzle

3.Filling capacity: 100 ~ 1000ml

4.Filling accuracy: 99.5%

5.Filling form: constant pressure and self flow.

6.Production speed: 500 ~3000bottles / hour (based on 1000ml / bottle)

7.Conveyor belt: 82mm wide POM chain belt, 750mm ± 25mm above the ground

8.Conveyor belt motor: frequency control motor

9.Overall power: About 3KW / 380V, three-phase five wire

10.Program control: PLC + touch screen human-machine interface

11.The filling rack is made of stainless steel

12.Materials of filling nozzle and material contact parts: 304 stainless steel

13.Tank capacity: 40 L * 2

14.Feeding pump: 304 stainless steel self-priming pump

15.Protection device: material shortage shutdown alarm

16.Air pressure: Air pressure:

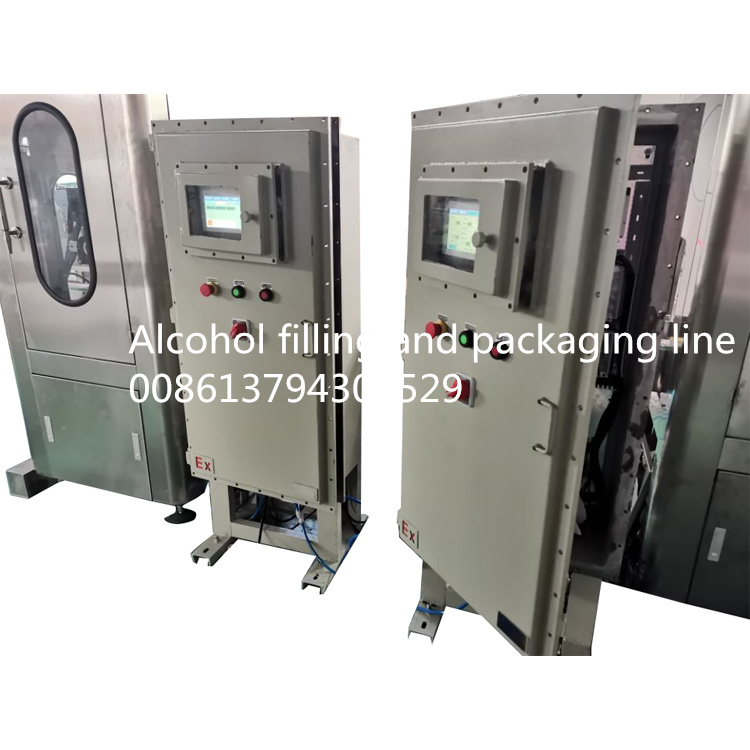

17.Positive pressure explosion-proof measures shall be adopted for exposed motors and other electrical appliances

any question, please contact with Cindy freely, 008613794308529, 36226571@qq.com, thanks

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
