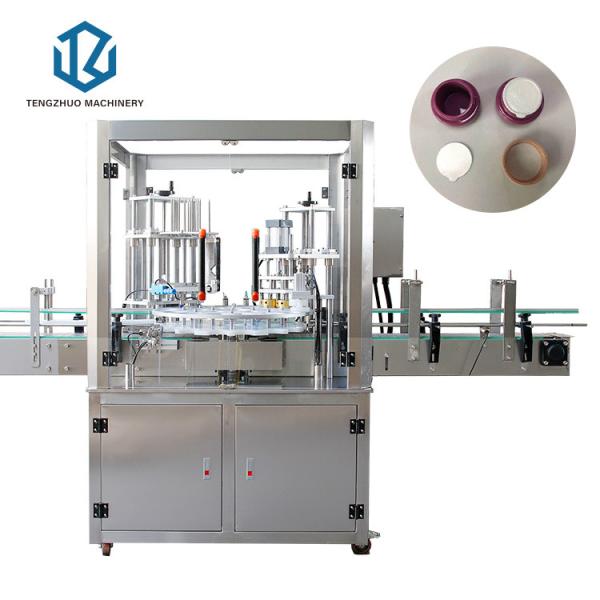

Automatic rotary double heads premade film heat sealing machine

1. Main machine appearance main materials are SUS304 stainless steel and T6 hard aluminum alloy;

2.Cup/Bottle diameter:50-100mm(only limit at one bottle diameter, need to replace star wheel & sealing head mold for different bottle diameter,replace time is around 30 mins);

3. Bottle height: 50-200mm adjustable(can customize for special height);

4. Suitable for bottle and cup: plastic bottle or cup, tin can, aluminum can, paper can, paper cup, glass bottle or cup

5. Bottle requirements: hard bottle body, bottle mouth is smooth;

6. Sealing head:2 heads

7.Sealing speed: about 30~35 cans/min(Speed will be different according to different bottles size & premade film type);

8. Aluminum foil requirement: Aluminum foil materials should be corresponding to the can materials(For example: PET material can use the PET film, PE material can use PE film),

aluminum foil thickness: 0.1-0.4mm.

9. Automatic film release system: It adopts the starting device to automatically drop the film and release the film accurately.

10. Aluminum/PE film Sealing system: It includes heating and constant temperature control parts, temperature sensor, sealing device, heat sealing plate and heat sealing head,

and pneumatic sealing motion execution parts.

11. Rated voltage: Single phase AC220V 50Hz, Conveyor motor power 200W, heating head power 800W, star wheel power 1300W,Total power:about 2300W;

12. Machine size:2800*1030*1700mm, Poly wood case packing size: 2250*1200*1940mm;

13. Net weight:380KG, Gross weight :480KG;

14. Seal time 1.2-2s, temperature set at 180-210℃;

15. Height of conveyor distant to ground is 900mm(+50mm), conveyor belt width:114mm;

16. This machine need additionally configure air compressor, the minimum air source pressure required 0.6MPa.

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
